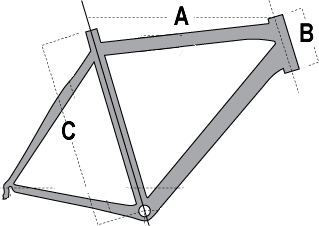

bike size wheel head tube top tube seat tube groupset (mix) setup
1.5 XS / 50cm 700c 130mm 521mm 476mm 2x9 50/34 - 12/26
1200 XS / 50cm 700c 100mm 531mm 500mm 2x9 50/34 - 12/26
Speedster S / 52cm 700c 130mm 530mm 520mm 2x10 53/39 - 12/27
1200 S / 54cm 700c 105mm 546mm 540mm 3x9 52/42/30 - 12/25
Xperience Compact M 700c 150mm 545mm 510mm 2x10 50/34 - 11/25
1.5 S / 56cm 700c 170mm 560mm 533mm 2x9 50/34 - 12/26
Xperience L 700c 173mm 560mm 540mm 2x10 53/39 - 12/27
1200 M / 56cm 700c 120mm 562mm 560mm 2x9 50/34 - 12/26
1200 M / 58cm 700c 140mm 573mm 580mm 2x9 50/34 - 12/26
Speedster XL / 58cm 700c 190mm 575mm 580mm 2x10 53/39 - 12/27
Soloist 61cm 700c 200mm 592mm 580mm 2x10 53/39 - 12/27
1200 L / 60cm 700c 155mm 584mm 600mm 2x9 50/34 - 12/26
Allez 62cm 700c 220mm 600mm 580mm 2x10 53/39 - 12/27
